Intel® N2800/D2550 processor on board
|
|
>
|
Supports Intel® NM10
|
|
>
|
Totally fanless and quiet design
|
|
>
|

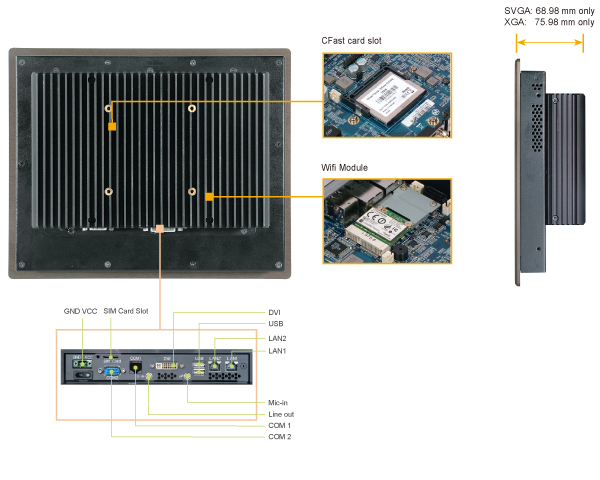

Support CFast slot
|
|
>
|
Optional Wireless LAN module
|
|
>
|
Support wide voltage DC in (9~36V)
|
|
>
|
Aluminum front bezel
|
|
|
|
Specifications
|
|
>> Systems
|
|
|
CPU Type
|
Intel® N2800/D2550
processor
|
|
Chipset
|
Intel® NM10
|
|
Memory Support
|
1 x DDR III SO-DIMM
socket (memory up to 4GB)
|
|
Front Bezel
|
Aluminum
|
|
IP65
|
Yes (for front panel
only)
|
|
Power requirement
|
DC in 9~36V
|
|
O.S. Support
|
Win7(32-bit)
|
|
Dimension
|
SVGA Type:281.6mm x
228.8 mm x 68.98mm (11.08" x 9" x 2.72")
XGA Type:281.6mm x 228.8 mm x 75.98mm (11.08" x 9" x
2.99")
|
|
System Weight
|
3.11Kg
|
|
VESA Mounting Support
|
VESA 75
|
|
Certificate
|
FCC / CE
|
|
>> I/O Ports
|
|
|
USB
|
2 x USB 2.0
|
|
Audio
|
1 x Line-out, 1 x
Mic-in
|
|
Serial Port
|
2 x COM port
(support +5V/ +12V/RI selectable), COM 2 for RS232/422/485
selectable
|
|
LAN
|
2 x LAN (10/100/1000
Mbps)
|
|
DVI
|
1 x DVI-I
|
|
Drive Bay
|
1 x 2.5" SATA
HDD
|
|
Expansion Slots
|
1 x CFast slot, 1 x
mini PCIe slot, 1 x SIM card slot
|
|
|
>> Display
|
|
|
LCD
|
10.4" SVGA or
XGA LCD Panel
|
|
Touch Screen
|
(ELO) 5W Analog
resistive (USB interface)
|
|
|
>> Environment
|
|
|
Operation Temp.
|
0° ~ 45° C (32° ~
113° F) (w/HDD)(with Airflow)
0° ~ 55° C (32° ~ 131° F) (w/Wide temperature CFast card)(w/o
Audio) (with Airflow)
|
|
Storage Temp.
|
- 20° ~ 60 ° C (- 4°
~ 140° F)
|
|
Humidity
|
20% ~ 90%
|
|
|
|
|
|
|
|
|
|
|
|
|
|
