Industrial
Motherboard
|
|
ATX
|
|

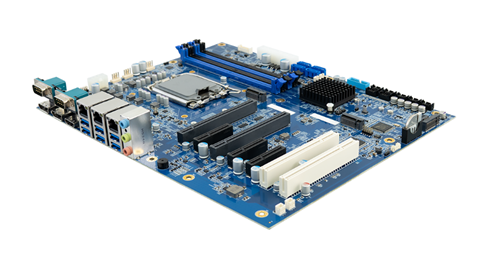

IPC-MP22409
ATX Motherboard with 14th/13th/12th Gen. Intel®
Core™ Processor
×
Supports 14th/13th/12th Gen. Intel®
Core™ & Pentium®/Celeron® Processors
×
Intel® R680E PCH
×
Flexible connectivity with 2 x COM, 3
x LAN, and 6 x USB rear I/O, supporting up to 6 x COM and 12 x USB in total
via onboard headers
×
Versatile expansion through 5 x PCIe,
2 x PCI, and 4 x M.2 slots
×
Multiple display outputs via 1 x HDMI
and 2 x DP

|
|
|
Mini-ITX
|
|

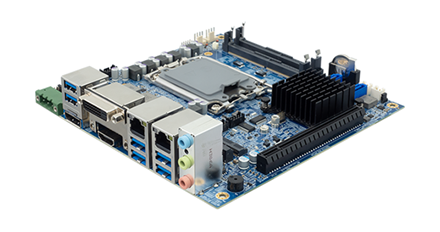

IPC-MP2226
Mini-ITX SBC with LGA1700 Socket 14th/13th/12th
Gen Intel® Core™ Processor
×
Intel® 12th & 13th & 14th
Gen. Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® CPU
×
4 x COM, 2 x LAN, 8 x USB
×
1 x HDMI™, 1 x DP, 1 x DVI-D
×
1 x M.2 B-Key, 1 x SIM slot for M.2
B-Key
×
1 x M.2 E-Key

|
|
|

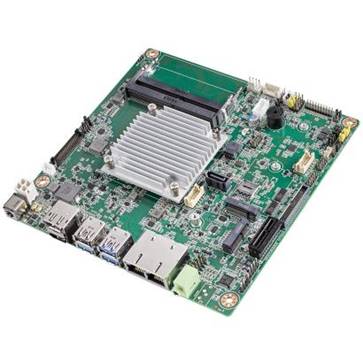

IPC-MA218
Mini-ITX Intel® Intel
Atom x6000E series, Pentium, Celeron N and J Series Processor
×
Supports Intel Pentium/Celeron
processor (Elkhart Lake), N6210/N6211/J6412/J6413/J6426/x6413E
×
Two 260-pin SO-DIMM up to 32 GB DDR4
3200 MT/s SO-DIMM
×
Supports, DP++, HDMI, eDP(or
LVDS)
×
Supports 1x M.2 (B-Key) and 1x M.2
E-Key (or 1x PCIe x1 Gen3), 6 COM, 3 USB 3.2 Gen2x1 & 5 USB 2.0, dual
LAN
|
|
|

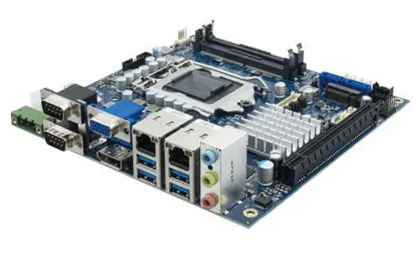

IPC-MBMI10
Mini-ITX Intel® 14th/13th/12th Gen. Core™ DT
processors with Intel R680E PCH
×
14th/13th/12th Gen Intel® Core™
i9/i7/i5/i3 DT processors, up to 65W
×
2x DDR5 SO-DIMM sockets, Max. 64GB,
support ECC
×
Intel® processor integrated graphic
supports eDP, LVDS and 2x DisplayPort (1.4a)
(DP++)
×
6x USB 3.2, 4x USB 2.0, 2x COM, 4x
SATA III
×
1x PCI-E (x16) [Gen.5.0]; 3x M.2 (1x
E-Key for WiFi/BT and 2x M-Key for NVMe)
|
|
|
Micro-ATX
|
|

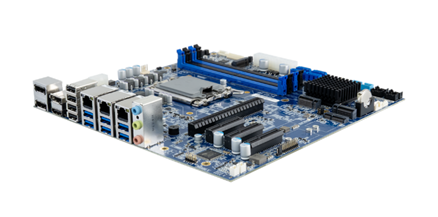

IPC-MP2K319
Micro-ATX Motherboard with Intel® 14th/13th/12th
Gen. Core™ Processor
×
Featuring Intel® 14th/13th/12th Gen.
Core™ i9/i7/i5/i3 & Pentium®/Celeron® Processors
×
Optional Intel® R680E/Q670E/H610E PCH
×
Max. 6 x COM, 3 x LAN, and 14 x USB
ports (R680E/Q670E)
×
1 x HDMI™ & 3 x DP
×
4 x PCIe & 4 x M.2 slots for
versatile expansion (R680E/Q670E)

|
|
|
End-of-life
|
|

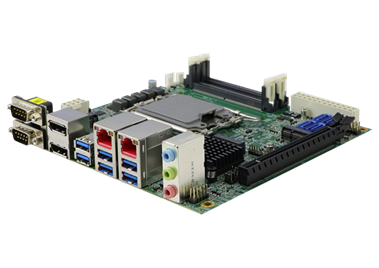

IPC-MP22503*
Mini-ITX
Intel® 6th/7th Gen. Core™ i7/i5/i3/Pentium/Celeron® desktop and server
processor
× Intel® 7th/6th Gen.
Core™ i7/ i5/ i3 CPU
× 6 x COM, 2 x LAN, 9
x USB, 1 x LPT
× 2 x DVI, 1 x DP
(internal)
× 2 x SATA, supporting
RAID 0/1
× 1 x PCIe (x16), 1 x
half-sized mPCIe
*Board has been modified, no ‘Reset’ function.
|
|
|
IPC-MP822
Mini ITX with
Intel Atom N455 processor
×
Intel Atom N455 1.66GHz processor
×
2GB DDR3 memory support
×
Dual GbE LAN
×
2x SATA III, 8x USB, 4x Serial port,
and 1x Parallel port
×
Windows 7 Support

|
|
|
IPC-MP742
ULV Celeron M
Mini-ITX Motherboard with VGA/ Sound/ 2LAN
×
Low power CPU for fanless
solution
×
Mini-ITX form factor
×
Supports Mini-PCI card
× Supports
4x COM ports
|
|
|
IPC-MP472
ULV Celeron M
Mini-ITX Motherboard with VGA/ Sound/ 2LAN
×
Low power CPU for fanless
solution
×
Mini-ITX form factor
×
Supports Mini-PCI card
× Supports
4x COM ports
|
|
|
IPC-MP441R
ATX Socket 775
Pentium 4 Motherboard with VGA/Sound/2LAN
×
LGA775 Pentium 4
×
4GB DDR2 memory support
×
1x PCI-E slot (SDVO), 2x PCI-E slots
(1x), 3x PCI slot, 1x EPCI
×
PS/2 connector
×
High speed LAN port

|
|
|
