FEATURES |
| > |
Intel
Celeron M ULV 1GHz lower-power platform |
| > |
15" LCD
display with touch screen
|
| > |
Durable and
low-profile design |
| > |
Silent POS
terminal (acoustic noise < 35dB) |
| > |

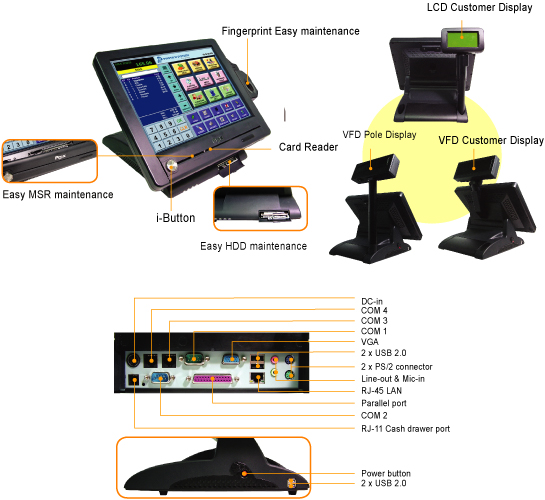

Easy
Maintenance Design for HDD, exchangeable MSR and
Integrated Jumper Setting |
| > |
Optional
Wireless (802-11 b/g WLAN capability) |
| > |
Optional
Pole Display of three types fabricate for one LCD
and two VFDs setup
|
|
|
|
Specifications |
|
>> Systems |
|
| CPU |
Intel Celeron M ULV 1GHz (BGA) |
| Memory |
1 x DDR SO-DIMM Slot, 256MB DDR SO-DIMM
(up to 1GB) |
| Core Logic |
Intel 852GM + ICH4 |
| Network |
10/100Base-T Fast Ethernet |
| Power Supply |
External 120W power adaptor |
| System Weight |
8.7kg (19.2lb) |
| Dimension (W x H x D) |
365 x 306 x 378 mm (14.4" x 12" x
14.9") |
| O.S. Support |
Windows 2000 / XP / XPE, Linux,
WEPOS |
| Certificate |
CE/FCC/UL |
|
>> I/O Ports |
|
| HDD |
1 x 2.5" HDD (standard 40GB) |
| CF |
1 x optional Compact Flash
slot for CF type I/II storages (You can
install HDD or CF, not for both) |
| USB |
4 x USB 2.0 ports (2 in Rear
; 2 in Side) |
| Serial Ports |
2 x DB-9 (COM1&2), 2 x RJ45
(COM3&4) (+5V/12V selectable) |
| Parallel |
1 x Parallel port (SPP / EPP
/ ECP) |
| PS/2 |
2 x PS/2 ports |
| LAN |
1 x RJ-45 interface |
| Audio |
1 x Line-out, 1 x MIC-in
audio jack |
| VGA |
1 x DB-15 VGA interface |
| Cash Drawer |
1 x RJ-11 Interface (12V &
24V Selectable) |
|
|
>> Display |
|
| LCD |
15" TFT LCD |
| Max. Resolution |
1024 x 768 |
| Brightness |
250 cd/m2 |
| Touch Screen |
5-wire Analog resistive |
| Viewing Angle |
0 ~ 60 degree |
| Display Tilt Angle |
51 degree (0-51 degree
without pole display) |
|
|
>> Environment |
|
| Operation
Temperature |
0°~35°C(32°~95°F) |
| Storage Temperature |
-20°~60°C(-4°~140°F) |
| Humidity |
20~90% |
|
|
|
|
