FEATURES |
| > |
Pentium M /
Celeron M high performance platform |
| > |
15" LCD
display with touch screen
|
| > |
Flexible
design for versatile applications
|
| > |
Silent POS
terminal (acoustic noise < 35dB) |
| > |
Optional i-Button
for user identification & security control |
| > |
802.11 b/g
WLAN communication capability
|
| > |

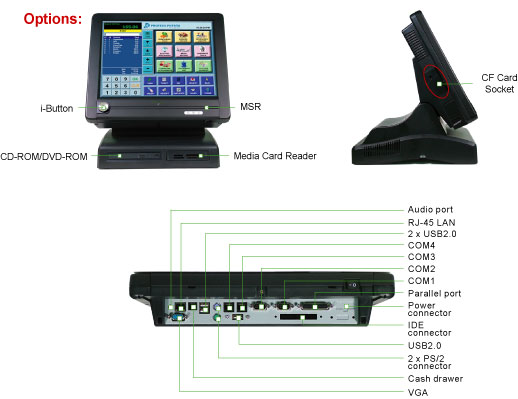

Optional
9-in-1 media card reader and slim-type CD-ROM |
|
|
|
Specifications |
|
>> Systems |
|
| CPU Support |
Intel Celeron M 1.5GHz CPU(up to
Pentium M 1.8GHz) |
| Memory Support |
1x DDR SO-DIMM Slot, 512MB DDR
SDRAM(up to 1GB) |
| Core Logic |
Intel 855GME & ICH4 support FSB
400MHz CPU, DDR 266 / 333 |
| Expansion |
32-bit Mini-PCI slot x 1 |
| Audio |
AC '97 Codec with internal mono
speaker (2watt x 1) |
| Power Supply |
180W ATX power supply,AC 100-240V
input |
| System Weight |
11kg |
| Dimension (WxHxD) |
365 x 402.38 x 367.2 mm (14.37"
x15.84 " x14.46 ") |
| O.S. Compliant |
Windows 98/2000/XP/XPE, Linux, WEPOS |
| Network |
10/100Base-T Fast Ethernet (optional
802.11 b/g WLAN Mini-PCI module) |
| Certificate |
CE/FCC |
|
>> I/O Ports |
|
| Drive Bays |
1 x 40G 3.5" HDD, CF Slot
(Type I&II),1 x 2.5" HDD (Option) 1 x Slim
CD-ROM (in stand) |
| HDD |
1 x 3.5" HDD (standard 40GB) |
| CD-ROM |
1 x slim-type CD-ROM
(optional) |
| CF |
1 x bootable Compact Flash
slot for CF type I/II storages (optional) |
| USB |
3 x USB 2.0 ports |
| LAN |
1 x RJ-45 interface |
| PS/2 |
2 x PS/2 ports |
| Audio |
1 x Line-out audio jack |
| VGA |
1 x DB-15 VGA interface |
| Others |
1 x RJ11 port for 12V Cash
Drawer |
| Serial Port |
2 x DB-9 (Com 1& 2), 2 x
RJ-45 (Com 3& 4), +5V/12V Selectable |
| Parallel Port |
1 x DB-25 parallel port (SPP/EPP/ECP) |
|
|
>> Display |
|
| LCD |
15" TFT LCD |
| Max. Resolution |
1024 x 768 |
| Brightness |
250 cd/m² |
| Touch Screen |
5 Wire Analog resistive |
| Viewing Angle |
0 ~ 60 degree |
| Display Tilt Angle |
2~80 degree |
|
|
>> Environment |
|
| Operation
Temperature |
0°~35°C(32°~95°F) |
| Storage Temperature |
-20°~60°C(-4°~140°F) |
| Humidity |
20~90% |
|
|
|
|
