FEATURES |
| > |
Pentium® M
/ Celeron® M / ULV performance platform |
| > |
15" LCD
display with touch |
| > |
Flexible
design for versatile applications
|
| > |
Fanless POS
(with Celeron® M 1.0GHz ULV)
|
| > |
Optional
2"/3" easy loading thermal printer |
| > |
Optional i-Button
& MSR |
| > |
Small
footprint |
| > |
Vertical
design
|
|
|
|
Specifications |
|
>> Systems |
|
| CPU Support |
Intel® Celeron® M ULV 1GHz CPU (uBGA)
/ Celeron® M 1.5GHz (up to Pentium® M 1.8GHz) |
| Memory |
1 x DDR2 SO-DIMM Slot, 512MB DDR2
SO-DIMM (up to 1GB) |
| Core Logic |
Intel® 910GMLE + ICH6M |
| Network |
10/100Base-T Fast Ethernet |
| Audio |
AC '97 Codec with internal mono
speaker (2watt x 1) |
| Power Supply |
120 / 150 Watt Power Adapter |
| System Weight |
11.5 kg / 13 kg (Fanless) |
| Dimension (W x H x D) |
295 x 260 x 471 mm ( 11.61" x 10.24"
x 18.54" ) |
| O.S. Support |
Windows XP / XPE, WEPOS |
| EMC & Safety |
CE, FCC, UL, CCC, CB |
|

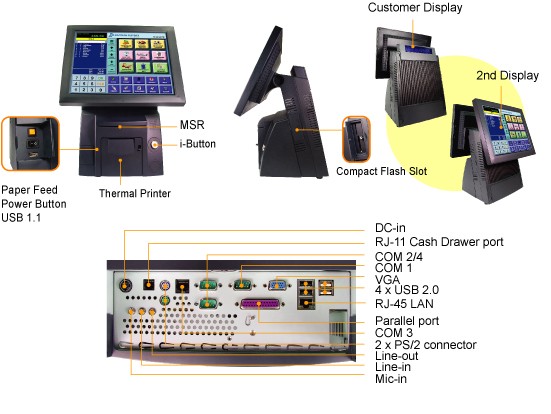

>> I/O Ports |
|
| HDD |
1 x 2.5" SATA HDD ( standard
80GB ) |
| CF |
Bootable Compact Flash slot
for CF type I/II storages |
| USB |
4 x USB 2.0 port / 1 x USB
1.1 on front bezel |
| Serial Port |
3 x DB-9 (COM 1/2/4), 1 x
RJ45 (COM 3), +5V/12V Selectable |
| Parallel Port |
1 x parallel port (SPP / EPP
/ ECP) |
| LAN |
1 x 10 / 100 Mbps |
| Audio |
1 x Line-in, 1 x Line-out, 1
x Mic-in (Option) |
| VGA |
1 x DB-15 VGA interface |
| Cash Drawer |
1 x RJ11 Cash Drawer port
(12V / 24V) |
| Printer |
2" or 3" easy loading
thermal printer with Auto cutter |
| LCD |
15" TFT LCD |
|
|
>> Display |
|
| Max. Resolution |
1024 x 768 |
| Brightness |
250 cd/m˛ |
| Touch Screen |
5-wire Analog resistive |
| Viewing Angle |
0 ~ 65 odegree |
|
|
>> Environment |
|
| Operation
Temperature |
0°~35°C(32°~95°F) |
| Storage Temperature |
-20°~60°C(-4°~140°F) |
| Humidity |
20~90% |
|
|
|
|
