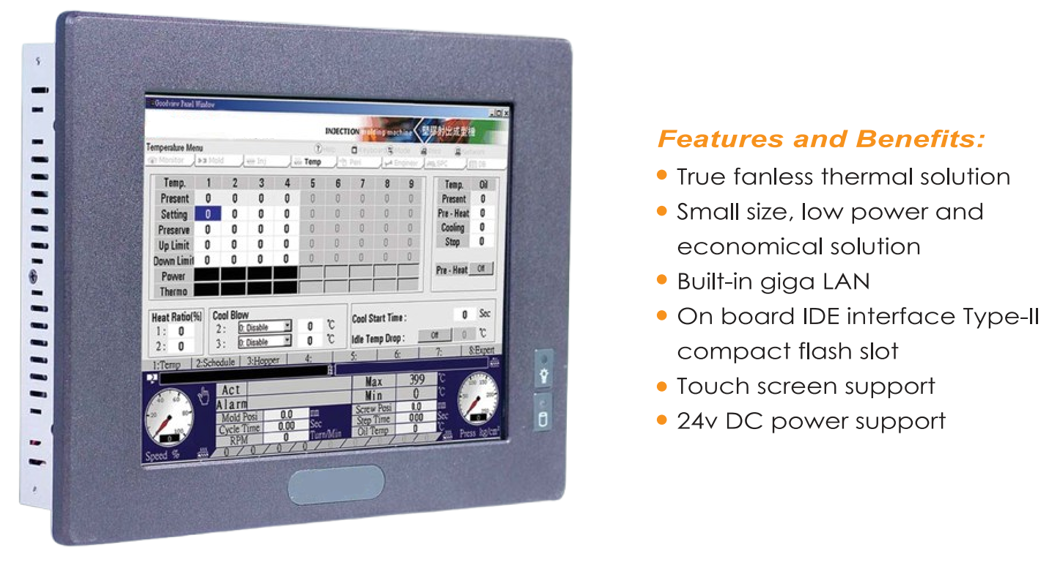

FEATURES
|
| > |
IntelŽ
CeleronŽ M ULV CPU on board
|
| > |
IntelŽ
852GM Chipset |
| > |
Totally
fanless and quiet design |
| > |
Low power
consumption and economical solution |
| > |
High
precision touchscreen |
| > |
24V DC
power support |
| > |
On-board
IDE interface, Type II CompactFlash slot |
|
|
|

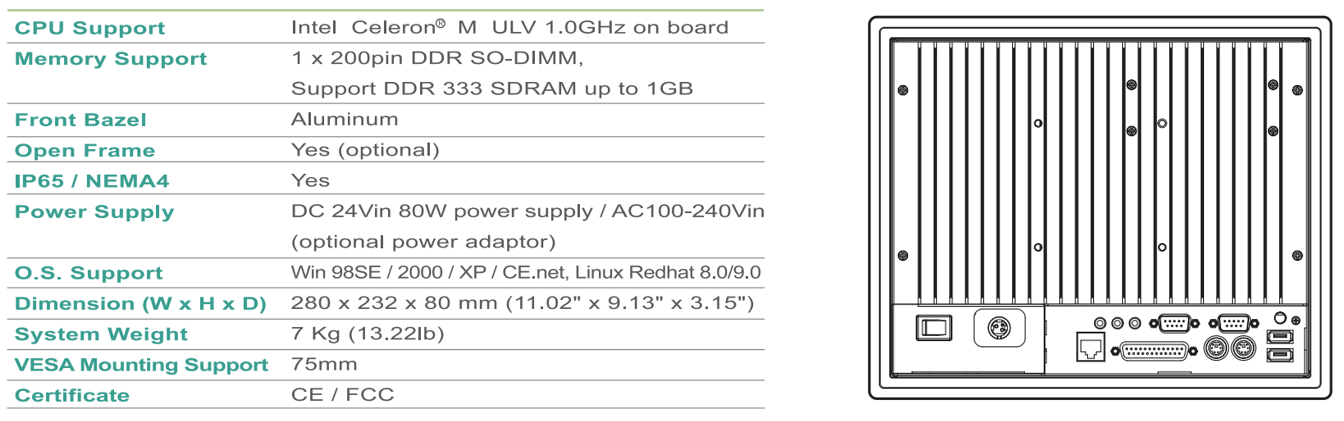

Specifications |
|
>> Systems |
|
| CPU Type |
Intel Celeron M ULV 1.0GHz on board |
| Memory Support |
1 x 200pin DDR SO-DIMM, support DDR
333 SDRAM up to 1GB |
| Front Bezel |
Aluminum |
| Open Frame |
Yes (optional) |
| IP65 / NEMA4 |
Yes |
| Power Supply |
DC 24Vin 80W power supply /
AC100-240Vin (optional power adaptor) |
| O.S. Support |
Win 98SE/2000/XP/CE.net, Linux
Redhat 8.0/9.0 |
| Dimension (WxHxD) |
280 x 232 x 80 mm (11.02" x 9.13" x
3.15") |
| System Weight |
7 Kg (13.22lb) |
| VESA Mounting Support |
75mm |
| Certificate |
CE/FCC |
|

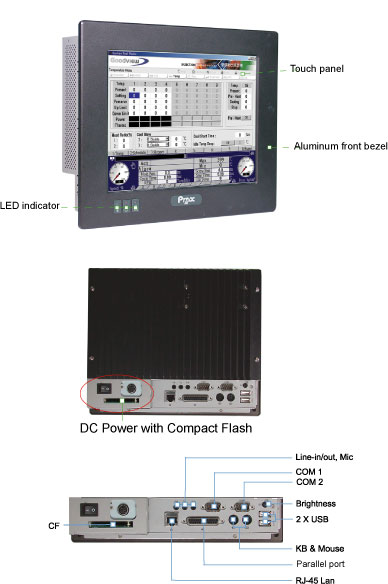

>> I/O Ports |
|
| USB |
2 x USB2.0 |
| KB/Mouse |
2 |
| Audio |
Line in/Line out/MIC in |
| Parallel |
1 x parallel port (SPP/EPP/ECP) |
| Serial Port |
2 x COMs, COM1 supports +5V
or +12V, COM2 for RS232/422/485, supports
+5V only |
| Digital I/O |
N/A |
| LAN |
10/100 Mbps |
| VGA |
N/A |
| Brightness Control |
VR on rear panel |
| Drive Bay |
1 x 2.5" HDD, 1x IDE CF slot
on board |
| Expansion Slots |
N/A |
|
|
>> Display |
|
| LCD |
10.4" SVGA TFT LCD |
| Touch Screen |
5W Analog resistive (USB
interface) |
|
|
>> Environment |
|
| Operation
Temperature |
0°~40°C(32°~104°F) |
| Storage Temperature |
-20°~60°C(-4°~140°F) |
| Humidity |
20~90%
|
|
|
|
|
Highlights |
 |
|
