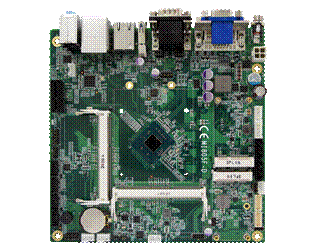

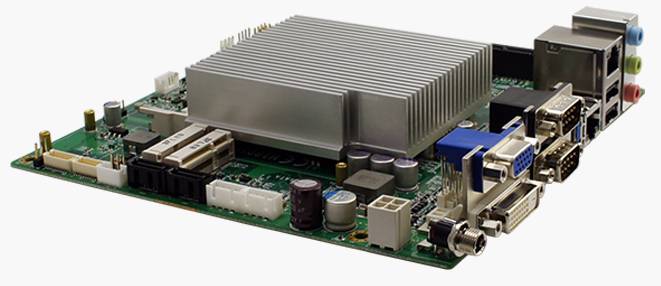

Mini-ITX with Intel® Celeron J1900 SoC

Home Products Sales Supports Contact

Products Guide

>>Single Board Computer

Full size CPU Cards

Half size CPU Cards

5.25" embedded boards

3.5" embedded boards

Industrial motherboards

>>Panel PC

Industrial Panel PCs

>>Applied Computer

Book size PCs

Embedded PCs

FEATURES

● Onboard Intel Celeron J1900(2.0GHz) SoC

● 2x DDR3L SO-DIMM, Max. 8GB

● Supports VGA, DVI-D and 24-bit dual channel LVDS

● Onboard dual PCI-E Gigabit LAN

● Watchdog timer, Digital I/O, iSMART

● 1x USB 3.0, 4x USB 2.0, 6x COM, 2x SATA II

● 1x PCI-E(1x), 1x Mini PCI-E, 1x mSATA

Specifications

CPU

Intel® Celeron® J1900 SoC (2.0GHz, 2MB cache)

System Memory

2x DDR3L-1333 SO-DIMM, Max. 8GB(Non-ECC)

System Chipset

N/A

BIOS

AMI

Watchdog Timer

256 levels

SSD

mSATA

H/W Monitor

Yes

Expansion Slot

1x PCI-E(1x), 1x Mini PCI-E

VGA Controller

Intel® Celeron® J1900 integrated Gen7 graphics engines

VGA Memory

Max. shared memory – 224MB

Display Interface

Supports DVI-D, CRT 24-bit dual channel LVDS

Controller

Intel® I211AT PCI-E Gigabit LAN

Connector

RJ-45 onboard

I/O Chipset

Nuvoton NCT6106D

1x RS232/422/485 , 5x RS232, 2x SATA II

USB

1 port USB 3.0 on board

2 ports USB 2.0 on board
2 ports USB 2.0 via pin-header

Audio

Intel® Celeron® J1900 built-in audio w/ Realtek ALC269 codec

Others

12V~24V DC-In, iSMART, Digital I/O (4-in/4-out)

Dimensions

170mm x 170mm (6.7” x 6.7”)

Max. Power Requirement

TBC

Operating Temperature

0°C~60°C (32°F~140°F)

Storage Temperature

-20°C~80°C (-4°F~176°F)

Relative Humidity

10%~90% (non-condensing)
